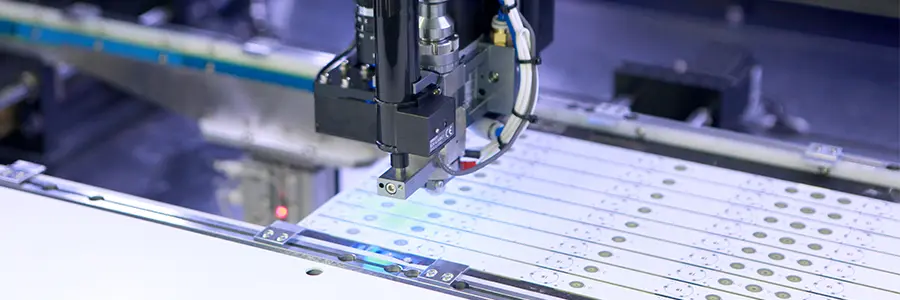

Sustinet unum-passum pastum pro LED, denudat usque ad 890mm in longitudine; valvae non-contactus JET7000 jetting ad augendae constantiam adhibet, materiam vastitatem extenuant, ac rates cedunt emendant; liberat eximiam efficientiam dispensandi - perveniens usque ad 42,000 punctis per horas, ut medium -ad-summa celeritate aequare SMT collocatione rates; liniamenta matura, stabilia, summus velocitatis motus suggestus; user-amica potestate software et programmandi facilem praebet; latae visionis positio includit recognitionem et recompensationem.

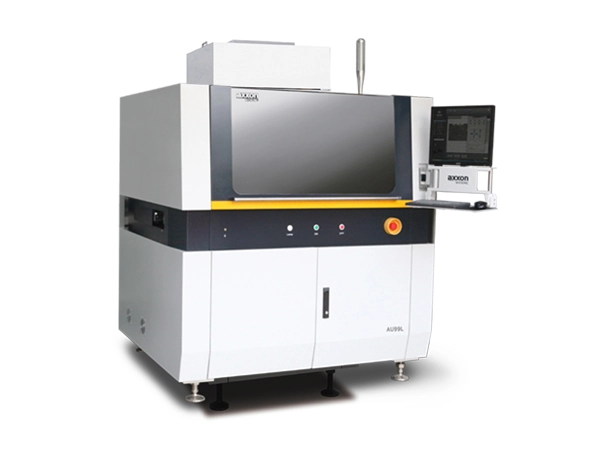

| Basic Parameters | Au99L (Magna X-axis Size Model) |
| Potentia Requirements | AC230V 11A 50/60Hz 2.5KW |
| Air Pressure Requirements | 90psi (6bar) |
| Dimensiones externae | 1450*1300*1550mm (W*D*H) |
| Pondus | 1050kg |
| Certification signa | CE |
| XYZ-Axis Positioning Accuracy | XY:±50μm@3σ; Z: ±10μm@3σ |
| XYZ-Axis Repeatability | XY: ±25μm@3σ; Z: ±5μm@3σ |
| Maximum Volo | 800mm/s (XY) |
| Acceleratio | 0.8g |
| Coegi Ratio | Servo Motor |
| Rail Load Capacity | 3 kg |
| Rail Latitudo Temperatio dolor | 60-535 mm |
| PCB Crassitudo | 0.5-6 mm |
| Communication Protocol | SMEMA |
| Maximilianus. Area dispensans (Single / Dual Rail) | Unius Rail: 890 mm 535 mm (W D) |
