CKD Technologia non solum novas machinas in genere, statim praesto est.
Nos quoque negotia accurata locamus, parati ad serviendum vestrae productionis exigentiis, dum signanter initialem obsidionem demittimus. Contact us pro magis details.
CKD turmas fabrum professionalium habet, promptos ad tradendas operas clavis vicissim.
Ad mercaturam machinarum adhibitarum, pete nobis per whatspp vel email.
-------------------------------------------------------------------------------------
| Pluma / configurationis | Technical Parameters & Description | Pluma / configurationis | Technical Parameters & Description |

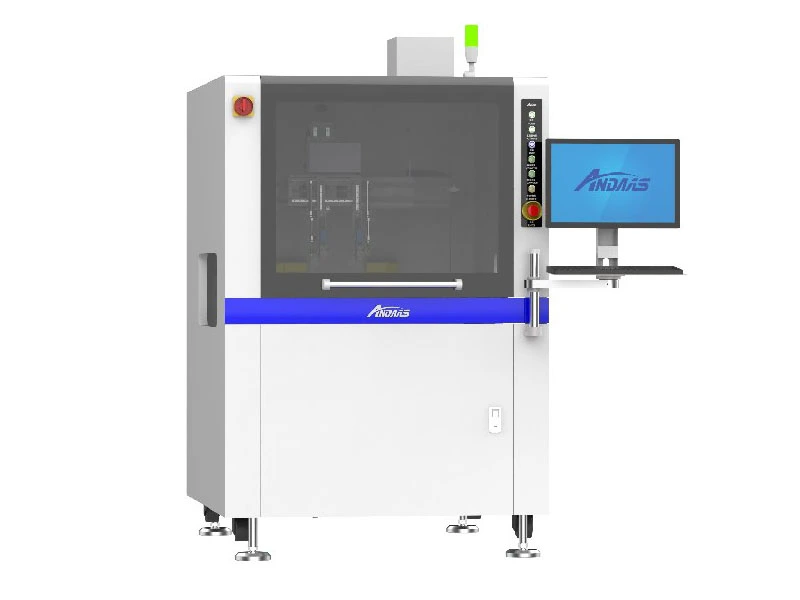

| Apparatus Model | iCoat-5I | Altitudo TRADUCTOR (mm) | 900±20 |
| Dimensiones altiore (mm) | L1400×W1100×H1870 | Vectorem Celeritas (m/min) | 2-16 |
| Apparatus pondus (kg) | 680 | TRADUCTOR Track | Aluminium speciale stannum + catena ferro immaculata |
| Imperium Methodo | Industriae PC + Motus Imperium Card | Width De revolutionibus Ratio | Automatic + ventilabis-button electrica commensurationem |
| Operans Software | Anda Control Software + Windows OS | Width De revolutionibus Volo (mm/min) | 250 |
| Programming Methodo | Doce Pendant / Keyboard & Mouse | PCB Edge Clearance (mm) | ≥5 |
| Axes | X, Y, Z, C | Motor virtutis vehiculis | 4 x NEMA 23 (57mm) Stepper Motors (100W) |
| Axis Drive | Servo motor + pila cochlea | Communication Portus | SMEMA interface |
| Z-axis configurationis | valvulae 4 lineares ordinatae; electrica latitudine commensurationem | Air Impetus | 0.4 MPa |
| Coing Travel (mm) | X: 110, Y: 450 | Maximilianus. PCB Size (mm) | X: 440, Y: 350 |
| Product Valvae Spacing (mm) | 63-110 | Exhauriunt Airflow opus est (m³ / min) | 15 |
| Maximilianus. Motus Motus (mm/s) | 600 | Potestas Supple | AC 220V, 50-60 Hz |
| Maximilianus. Altitudo pars (mm) | Superficies C et infra TRADUCTOR | Totalis potentiae (kW) | 2.6 |
| Capacitas onus (kg) | 5 | Standard Features | DUXERIT UV inspectionem lucis |
| Repetitio (mm) | ±0.03 | DUXERIT Lighting | |
| Numerus Tracks | 1 | Vastum Liquid Recuperatio | |
| Directio influunt | left → ius (Standard) | ESD Interface | |
| AOI Morbi | |||
| Visio Parameters | 10MP Industrial Color Camera, Stationarium Captura | Inspectio Items | Excessus / Insufficiens Coating |
| Ager Visus (mm) | 465×350 | Mobilitate inspectionis (s/pcs) | 5 |
| Pixel Resolution (μm) | 127 | ||
