CKD Technologia non solum novas machinas in genere, statim praesto est.
Nos quoque singula negotia rentalis habemus, parati ad serviendum vestrae productionis exigentiae specificae, dum signanter initialem obsidionem demittimus. Contact us pro magis details.
CKD turmas fabrum professionalium paratum habet ad servitium turnkey liberandum.
Ad mercaturam machinarum adhibitarum, pete nobis per whatsapp vel email.

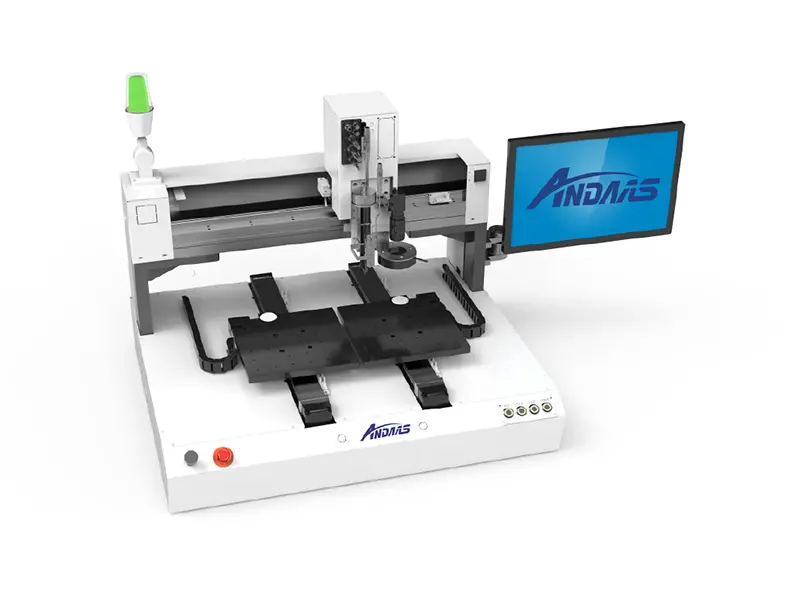

| Model | TSV-200D | HSV-200D |
| Dimensiones externae | L1120×W740×H760 (mm) | L1200×W740×H1460 (mm) |
| apparatu pondus | 100 kg | 130 kg |
| Imperium Methodo | Industriae PC + Motus Imperium Card | |
| Operans Software | Anda Control Software + Windows System | |
| Programming Methodo | Visio-fundatur Programming | |
| Axes | X, Y1, Y2, Z | |
| Axis Drive | Servo Motor + Linear Module | |
| Dispensatio Travel dolor | X1 X2: 260; Y1 Y2: 260; Z: 100 (mm). | X1 X2: 260; Y1 Y2: 260; Z: 100 (mm). |
| Numerus dispensandi Valvulae | 1 unit (standard) | |
| Maximilianus. motus celeritas | 800mm/s | |
| Repeatability | ±0.025mm | |
| Facultatem coating | 30cc | |
| COLLUM purgatio fabrica | Vacuum purgatio | |
| Apparatus terrorem | Menu + audibilis & visualis terror | |
| Coing deprehensio | Lorem palam | |
| Potentia copia | 220V 50/60Hz | |
| Aer pressura | ≥ 0.65 MPa | |
| vexillum salus | CE | |
| Summa potentia | 1.3 kW | 1.5 kW |
| Standard Features | CCD Visio Positioning | |
| Static Electricity Interface | ||
| RS-232 Scanner Port | ||
