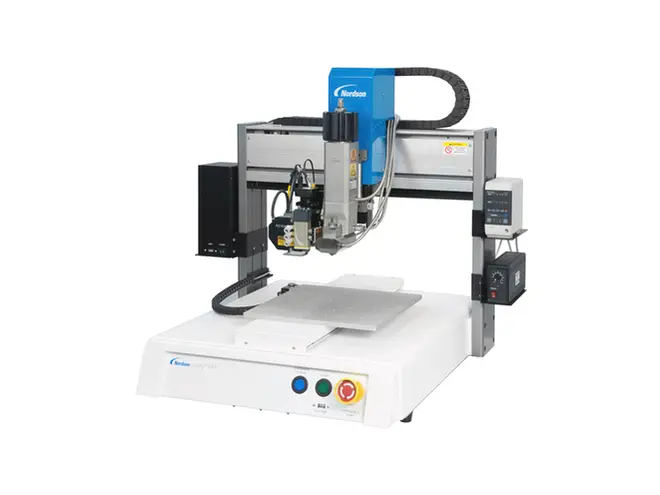

Professional UNITY Motion™ programmatibus et facultatibus visionis integratae faciunt unitatem 4-axis systematis facilem ad erigendam et programma. Motus simultaneus X et Y in U-axis gyrationis puncta certa programmandi praebet ad dispensandum in quolibet angulo per planum gyratorium 360°.
| Model | Unitas 4X-HV-U | Unitas 4XP PLUS-U |
| Numerus Axes | 4 Axes | 4 Axes |
| Maximum Working Area (X / Y / Z / U) | 350/400/100 mm ± 1080° (13.8/15.7/3.9 in) | 350/400/100 mm ± 1080° (13.8/15.7/3.9 in) |
| Workpiece Payload (F / U) | 7/2 kg (15.4/4.4 lb) | 22/2 kg (48.5/4.4 lb) |
| Instrumentum Payload | 8 kg (17.6 lb) | 8 kg (17.6 lb) |
| Maxime Volo (XY/Z) | 800/320 mm/s (31.4/12.6 in/s) | 500/250 mm/s (19.7/9.8 in/s) |
| Maximilianus. celeritas (U) | 1080°/s | 1080°/s |
| Unitas pondus | 61 kg (134.5 lb) | 70 kg (154.3 lb) |
| Dimensiones (W x D x H) | 820x672x867.5 mm (32.2x26.5x34.2 in) | 820x672x867.5 mm (32.2x26.5x34.2 in) |
| Coegi ratio | III, tempus Micro-gradus motricium | Clausa-loop gradiensque motricium et exactoris sarcina cum sensorem absolutum |
| Coegi ratio (U) | V, tempus Micro-gradus motricium | V, tempus Micro-gradus motricium |
| Memoria facultatem | PC repono | PC repono |
| Data repono | PC repono | PC repono |
| General-proposito EGO / O * | 8 inputs/8 outputs (16/6 ad libitum) | 8 inputs/8 outputs (16/6 ad libitum) |
| Coegi Ratio | PTP et CP * | PTP et CP * |
| Potestas Supple | Auto- commutatione, AC 100-240 V, 380 W | Auto- commutatione, AC 100-240 V, 380 W |
| Interpolatio | 4 secures (3D space) | 4 secures (3D space) |
| Repeatability | ±0.02 mm (0.0008 ex.) | ±0.01 mm (0.0004 ex.) |
| Temperature operating | 10-40°C (50-104°F) | 10-40°C (50-104°F) |
| Clausa-loop Motor System | Not available | Comprehendo |
| Indicium Deprehensio Ratio | Libitum | Comprehendo |
| Summus cura visio | Comprehendo | Comprehendo |
| Laser altitudo Deprehensio | Not available | Libitum |
