• Summus praecisio integrata compago iuncta firmitatem motus accurationis diu-term efficit
• Cochleas pilae praecisione importata utitur ad motum accurate et quietam operationem praestandam
• Features servo motore clauso-loop control; minima resolutio 0,002mm, celeritas maxima 800mm/s, et iterabilitas ± 0.025mm
• catenis chalybis immaculatis instructus 3mm/5mm featuring fibulas extensas; onus facultatem ad 10kg
• Protective design for track vincula ne tenaces contagione
• libitum una-segmentum vel dual-segmentum vestigia variae exolvuntur tempore (CT) requisita
• Track profiles pluma dura-anodized metam ad vetustatem superiorem
• User-amica interface; facile operari ac discere
• subsidia Sinica / Anglica diversa lingua in occursum commutatione necessitates
• Pluma-dives; subsidia clausa-loop vigilantia varii processus parametri
• Supports online and offline programming to suit different on-site operational needs
• Expandable includendi MES productionem traceability systems
• subsidia CCD-fundatur fiducialis signum positioning ut efficiens accurate et productio stabilitatem
• Software-fundatur automatic visio ultricies efficaciter tollit situm errorum per tabulas misalignment
• CCD programmatio sustinet, signanter minuendo tempus et laboris sumptibus cum doctrina manuali coniungitur

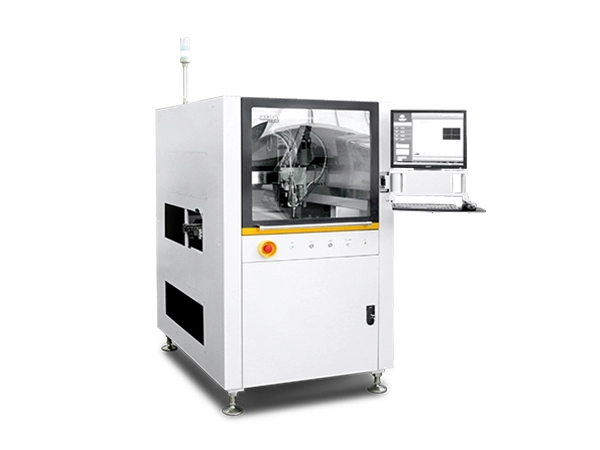

| Basic Parameters | AC-500S |
| Potestas Supple | 220V 50/60Hz 2.5KW |
| Air Impetus | 80psi (5.5bar) |
| Dimensiones | 980*1360*1630mm (W*D*H) |
| Pondus | 600kg |
| Exhaurire Requirements | Diameter 200mm; Airflow >13m³/min |
| Communication Protocol | SMEMA |
| dispensatio Area | 450* 450* 90mm (Single Valve) |
| Certification signa | CE/UL |
| Motus Type | Servo Motor + Ball Screw |
| X-Axis Travel | 460mm |
| Y-Axis Travel | 550mm |
| Z-axis peregrinatione | 100mm |
| X/Y-axis celeritate | 800mm/s |
| X/Y-axis accelerationis | 0.8g |
| Z-axis celeritas | 300mm/s |
| Z-axis accelerationis | 0.3g |
| X/Y/Z-axis repeatability | ± 25μm @ 3σ |
| Imperium modum | Industriae PC + Motus control card |
| Altitudo TRADUCTOR | 870-950mm |
| Celeritas TRADUCTOR | 400mm/s |
| Latitudo temperatio modum | Lorem width temperatio |
| Latitudo range | 40-500mm |
| Minimam tabulam in ore latitudo | 3mm |
| Rail productum longitudinem facultatem | 800mm (Single-section) |
| Rail onus facultatem | 10kg |
| Tabula alvi altitudo | Top 90mm / Bottom 90mm |
