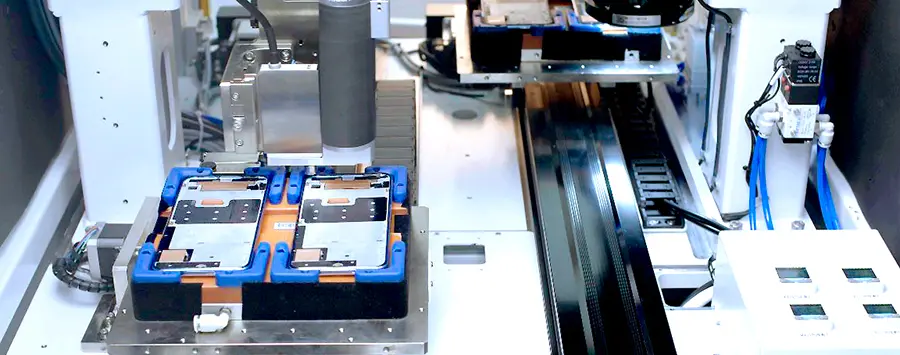

Altus effectus et humilis sumptus; dualis Y-axis parallela operatio ad efficientiam altam; potens visio positionis systematis, quod dispensat secundum semitas ordinatas secundum operationes agnitas.

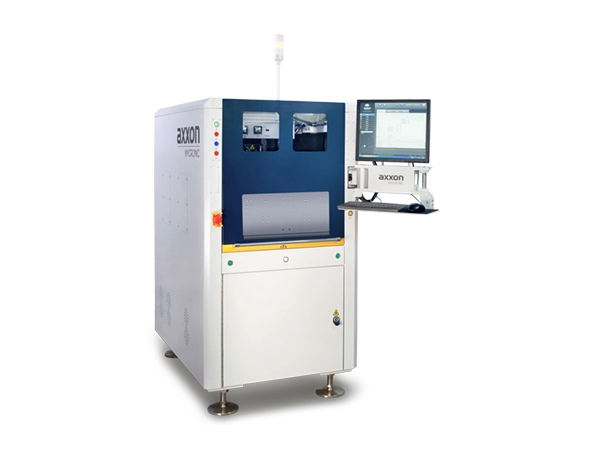

| Specifications | Ai400T |
| Potentia Requirements | AC230V, 11A, 50Hz, 2.5KW |
| Air Pressure Requirements | 90psi (6bar) |
| Dimensiones | 800 x 1150 x 1500mm (W x D x H) |
| Pondus | 650kg |
| dispensatio Area | W x D = 490 x 210mm (sine configuratione speciali) |
| Maximilianus. Substratum Location | W x D = 210 x 210mm |
| Substratum Crassitudo | <40mm |
| Positioning Cura | ±30μm @3σ (X, Y), ± 10μm @3σ (Z) |
| Repeatability | ±15μm@3σ (X, Y), ±5μm @3σ (Z) |
| Maximum Volo | 600 mm/s (X, Y) |
| Maxime Acceleratio | 0.6g (X, Y) |
| X/Y/Z-Axis Coegi Ratio | AC servo motore cum exquisita pila cochlea et clauso-lope potestate |
| Lux Source Type | Iuxta fontem |
