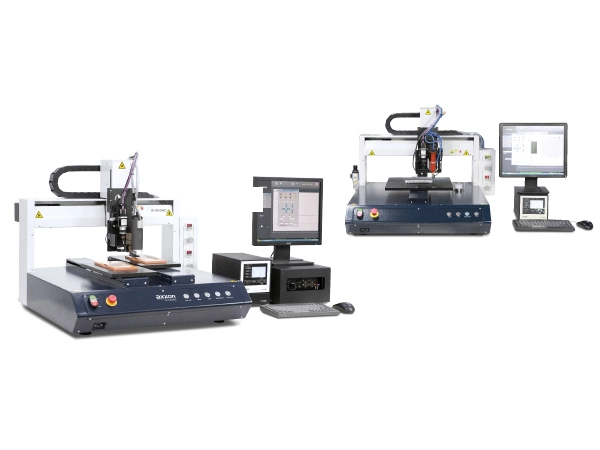

Series IS visionis escritorio parato robot facultates provectas gloriatur, incluso calibrationis latae, inspectionis visivae, barcode et notae fiducialis intuens, et Z-axis laseris altitudinis compensatio. Hae notae augent effectum roboti, ut id expediret ut requisitis per amplis applicationibus dispensandis occurreret.
• Moduli dispensandi Fingerprint
• FPC dispensatio et supplementum
• VCM et CCM dispensatio
• Underfill
• Encapsulation et coating
• anguli compages / encapsulation
• Solder crustulum dispensandi
• Earphone dispensandi et alia applicationes dispensandi
| Basic Parameters | IS-300H | IS-400H | IS-500H | IS-400HD | IS-500HD |
| Dimensiones W×D×H (mm) | 606×741×638 | 706×841×638 | 806×941×638 | 706×841×638 | 806*941*638 |
| X/Y/Z III-axis peregrinatione (mm) | 300*300*100 | 400*400*100 | 500*D*100 | - | - |
| X/Y1/Y2/Z 4-axis peregrinationes (mm) | - | - | - | 400*400*400*100 | 500*D*D*100 |
| Armorum pondus (kg) | 104 | 126 | 143 | 136 | 114 |
| X/Y/Z repeatability (mm) | ± 0.01 | ± 0.01 | |||
| X / Y / Z celeritate maxima (mm/s) | 800/800/300 | 800/800/800/300 | |||
| X / Y / Z accelerationis | 0.8g | 0.8g | |||
| X/Y/Z Mechanica Structure | H-Bridge | H-Bridge | |||
| X/Y/Z Methodo Imperium | IPC-fundatur motus moderatoris | IPC-fundatur motus moderatoris | |||
| X / Y / Z Coegi Ratio | AC servo + summus praecisio moduli | AC servo + summus praecisio moduli | |||
| Z-axis Lond (kg) | 5 | 5 | |||
| Y-axis Tabula Lond (kg) | 10 | 10 | |||
| Programming Methodo | PC | PC | |||
| Capacitas repono | 120GB (SSD) | 120GB (SSD) | |||
| Potentia (W) | 650 | 850 | |||
| Visio Positioning System | 1.3-megapixel industrialis camera | 1.3-megapixel industrialis camera | |||
| Consilium (mm/pixel) | 0.01 0.01 (commodus) | 0.01 0.01 (commodus) | |||
| Recognitio range (mm) | 14 14; | 14 14; | |||
| Lux fons | DUXERIT fons lucis (anulum lucis seu coaxial lux libitum) | DUXERIT fons lucis (anulum lucis seu coaxial lux libitum) | |||
