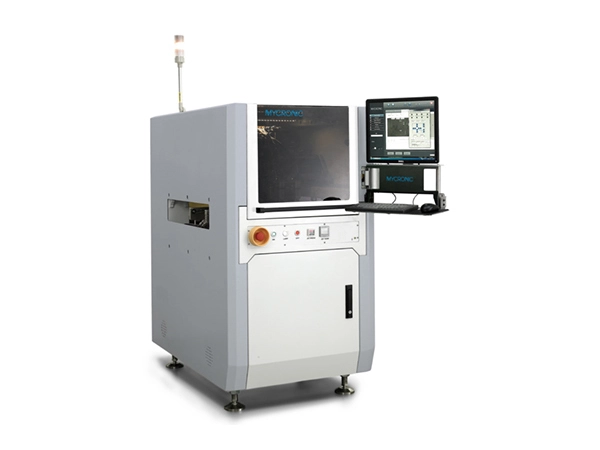

MyJ10X solida crustulum jet systematis excudendi non-planum PCBs accommodat (cum altitudinis differentiae minoris quam 0,4 mm) et crassitudinem solidi solidi continentis praebet, utentes utentes diversas crassitudines in variis locis specificare sinit. Typographiam directe in partes sustinet - aptam efficit processibus conventus 3D/reclinatis - et altam efficientiam tradit, necessitatem stencilorum tollendo.
- Nulla glamurosa requiritur; maxime idoneam ad applicationes ad iuncturam figurarum solida specifica requirit
- Celeri programmandi et verificationem pro diversis products
- Capax tractandi notabiles variationes in solido volumine inter pads adjacentes in eodem producto
- PoP facile sustinet (Package-in-Package) solida applicationes dispensandi
- No cleaning required; maxime facile sustentationem
- Praecipue apta productis ad densitatem integrationem altam
- Flexibile dispensatio producta apta superficiebus inaequalibus (altitudinibus variatis); imperium solidum volumen precise
| Basic Parameters | MYJ10X in-linea Solder Crustulum Jetting rostris |
| Dimensiones | 770 x 1200 x 1400 mm (W x D x H) |
| Apparatus Pondus | DCL kg (Latin configuration) |
| dispensatio Area | W x D = 350 mm x 475 mm. |
| Maximilianus. PCB Location (Single-lane Modus) | W x D = 350 mm x 475 mm |
| Maximilianus. PCB Location (Dual-lane Modus) | W x D = 350 mm x 210mm (dual-track simultaneum) |
| Conveyor | Altitudo 890–965mm; vexillum SMEMA communicationis; dual-track optionem available |
| Capacitas onus vehiculi (incl. fixture) | 3kg (custumisation requisiti oneribus) |
| Vehiculum latitudine commensuratio range | Single-track: 50-475mm; dual-track simultaneus: 50-210mm |
| PCB crassitudine | 0.5mm < T < 6mm; Aliquam requiratur ad alias crassitudines |
| Positioning accuracy | ±30μm @3σ (X, Y) |
| Repeatability | ±15μm@3σ (X, Y) |
| Maximilianus. celeritas | 1000 mm/s (X, Y) |
| Maximilianus. acceleratio | 1g (X, Y) |
|
|
|
| Basic parametri | Crustulum valvae solidatur jetting |
| Valvae configurationis AP (small) | 215-260μm; 2.1-3.2nl; 200Hz |
| Configuratio valvae AG (medii) | 330-520μm; 5-20nl; 160-300Hz |
| Materia feed pressura aeris | 15.9 Psi |
| Jetting altitudo | 0.6±0.1mm |
| Genus Certification | CE |
