Facile tractat superficies curatio in sensitivo
- Contact-capax argonis plasma
- Nullas scintillas, arcus, pulverem, radios UV, seu caloris nimii generat
- Nulla electrostatic missio (ESD) periculum est pro componentibus electronicis sensitivis (exampla, lagana, tabulae plumbeae, partes fasciculorum semiconductoris)

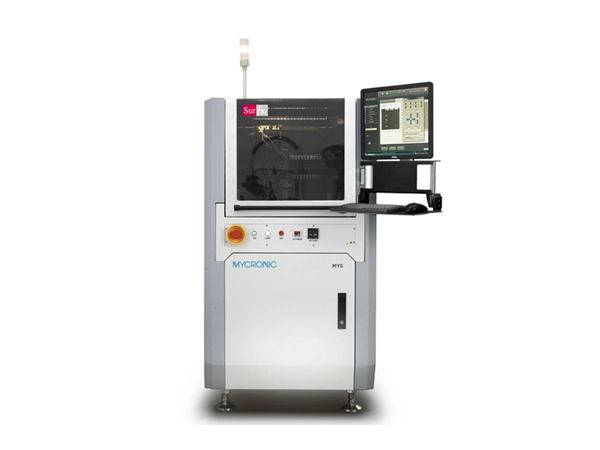

| Basic Parameters | MYS Plasma Superficies Curatio System Platform |
| Potentia Requirements | 220 V, 2 kW, 10 A, 60 Hz |
| Gas Requirements | 90 psi (6 bar) |
| Dimensiones (W x D x H) | 1,200 x 770 x 1,400 mm |
| Pondus | 650 kg |
| Certification | CE |
| Positioning Cura | XY: ±30 µm @3σ; Z: ±10 µm @ 3σ |
| X, Y, Z | XY: ±15 µm @3σ Z: ±5 µm @3σ |
| Maximam celeritatem | 1000 mm/s (X, Y) |
| Acceleratio | 1.0 g * |
| Camera resolution | 640 x 480 px (0.3 MP) |
| Coegi ratio | AC servo |
| TRADUCTOR type | Cingulum |
| Deveyor onus facultatem | 3 kg |
| Minimum productum latitudine | 50 mm |
| Maximum productum latitudine | 475 mm |
| Minimum productum longitudinem | 50 mm |
| Maximum productum longitudinem | 350 mm |
| Software operating ratio | Windows 7 |
| Productum crassitudine range | 0.5-6 mm |
| Communicatio protocol | SMEMA |
| Plasma area (D x W) | 475 x 350 mm |
|
|
|
| Basic specifications | Plasma System Requirements |
| RF Power | 600W apud 27.12 MHz |
| Primarium Plasma Gas | Argon |
| Processus Gas | O2, N2, vel H2 (alii subsunt probationes); |
| Gas Supple Impetus dolor | 30-100 psig (0.2-0.7 MPa) |
