CKD Technologia non solum novas machinas in genere, statim praesto est.
Nos quoque negotia accurata locamus, parati ad serviendum vestrae productionis exigentiis, dum signanter initialem obsidionem demittimus. Contact us pro magis details.
CKD turmas fabrum professionalium habet, promptos ad tradendas operas clavis vicissim.
Ad mercaturam machinarum adhibitarum, pete nobis per whatspp vel email.
-------------------------------------------------------------------------------------

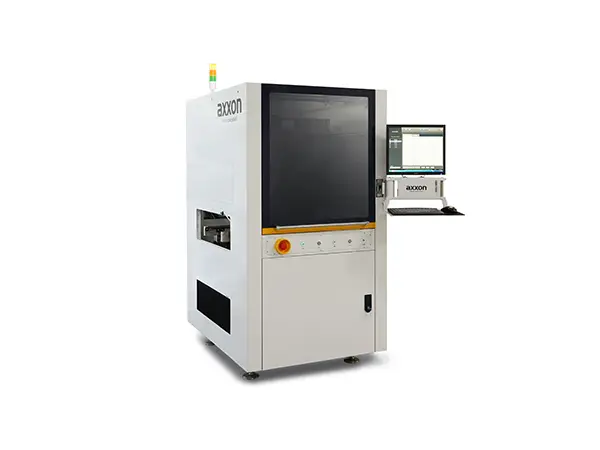

MYS10SD est plene automated, in linea plasma processus systematis enucleatum pro applicationibus in sectoribus ut Mini LED, electronicis, SMT, optoelectronicis et medicinalibus technicis.
• Atmosphaerico-pressio argonis latae areae plasma systematis
• 100mm-latum in-linea massae plasmatis processui; offert 2-5 temporibus altiorem efficientiam et super XXX% inferiores pretia laboris ad traditional modos
• Product superficies temperatura infra 45°C in processui
• Instant satus cum nulla fermentum tempus eget, tempus productionis nisi
• Potens amplis productis expediendis; sustinet flexibile commutatione inter plasma capita variae magnitudinis
• Valde flexibile, compatibile, et plasma plasmatis cost-efficax
• Capax targeted purgatio specifica productum areas
| Basic Specifications | MYS10SD |
| Potentia Requirements | AC 200~ 240V, 3.2kW, 15A, 50Hz |
| Air Pressure Requirements | 90psi (6bar) |
| Dimensiones | 990*1300* 1800mm |
| Pondus | 680kg |
| Certification signa | CE |
| Positioning Cura | XYZ: ±50µm @ 3σ |
| XYZ-Axis Repeatability | XYZ: ±25µm @ 3σ |
| Maximum Speed | 600mm/s (XY) |
| Acceleratio | 0.6g |
| Coegi Ratio | AC servo |
| Opus Specifications Platform | |
| Conveyor Type | Cingulum |
| TRADUCTOR Lond capacitatem | 3kg |
| Substratum Crassitudo dolor (sine carrier) | |
| 0.5-10 mm | |
| Z-axis travel | 60 mm |
| Maximilianus. pars altitudinis (top parte) | 100 mm |
| Maximilianus. pars altitudinis (ima parte) | 100 mm |
| Communicatio protocol | SMEMA |
| range opus | |
| Plasma area curatio (W D) | 475-480 mm |
| Post-curatio anguli contactus (WCA) | WCA < 10° (laganum Pii) WCA <20° (Non-metallica) |
| Plasma curatio methodo | Ar + C2 processum ad organicum contaminantium remotionem |
| Plasma ratio requisita | |
| RF potentia | 250 W at 13.56 MHz |
| Main plasma gas | Argon |
| Processus gas | O2 |
| Gas copia pressura range | 40-120 psi (0.3-0.8 MPa) |
